Overview
This application allows you to view projected asset and component schedules based on selection criteria.
Function

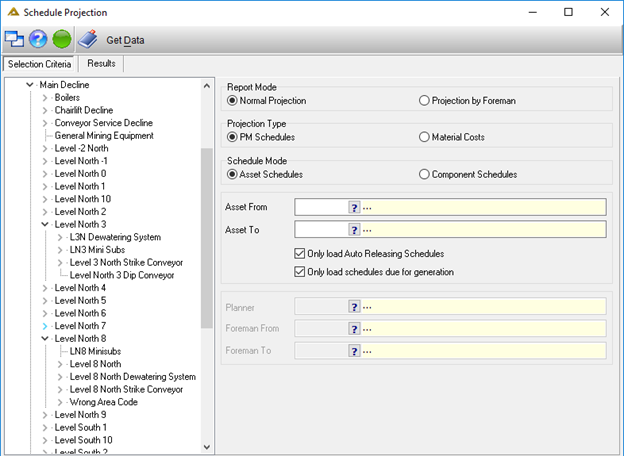

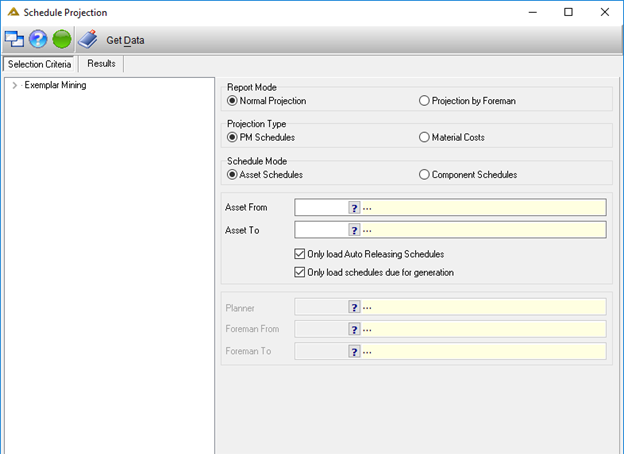

When the application is opened, you will have the following options:
There are 2 modes to choose from, normal projections or projections by foreman.
Two projection types are available, PM Schedules and Material cost.
Material Cost selection will display a summary of expected material costs.
Select whether you would like to generate asset schedules or component schedules.
An asset can be chosen from the drill-down tree on the left of the screen or can be selected using the available picker. If left blank, the projection will be generated for all assets.
Only auto releasing schedules can be viewed on the projection when checking the check box.
Only schedules due for generation can be viewed on the projection when checking the check box. Click on the
button to load the schedule projections.
Schedule Projection results can be exported to Excel using the
button:

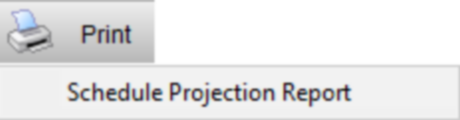

The
button will give you the following options:

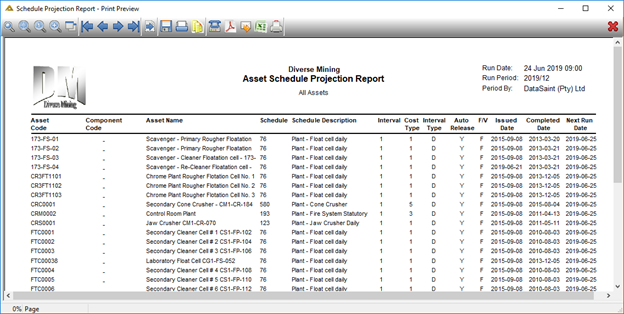

The Schedule Projection Report option will generate a print preview:
