Overview
This program is used to view work order statistics per foreman.
Function

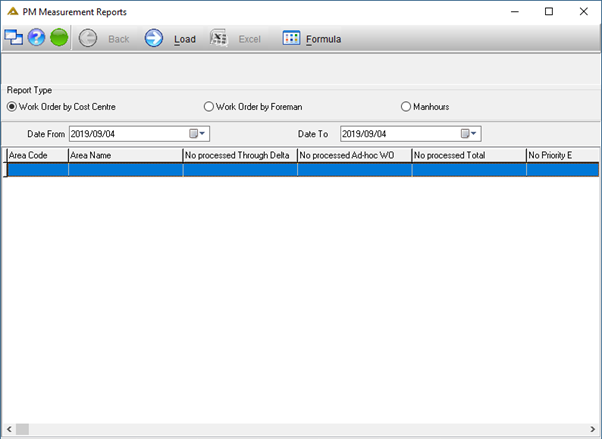

When the application is opened, you will view the following screen:

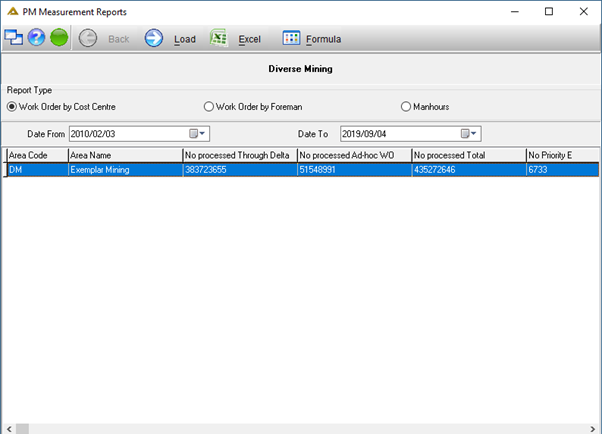

Select the report type you wish to view. Specify a date range and click on the
button:

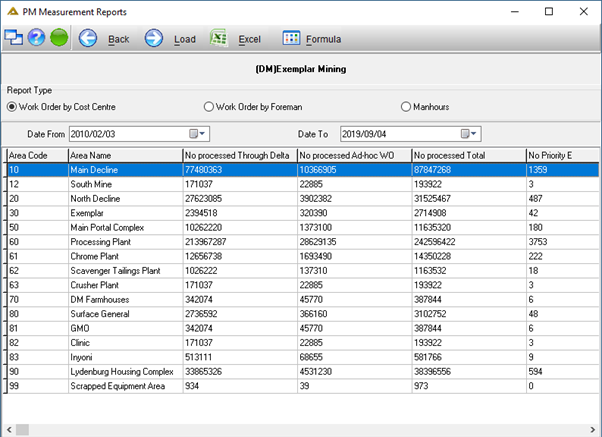

You can drill down to the next level by double-clicking the line in the grid.

You can go up a level by clicking the
button.

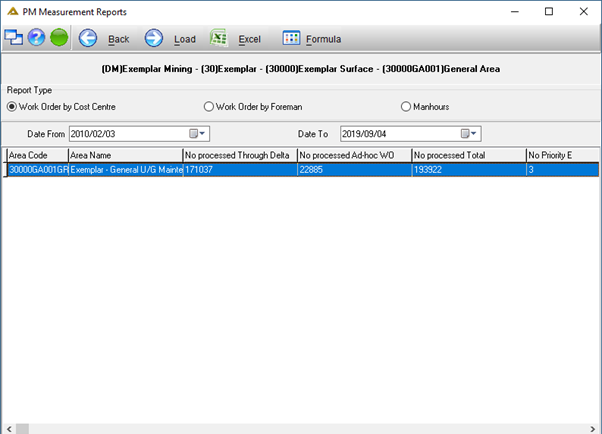

The system will drill down to the next level for the line that was double-clicked. The line which was double clicked will be displayed at the top of the screen:

The

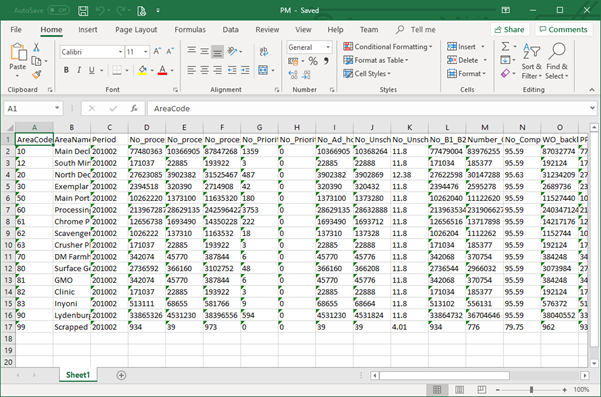

button will export the data currently displayed to a Microsoft Excel spreadsheet:

The
button will display a screen which describes how the system calculates and finds the data.
Cost Centre tab:

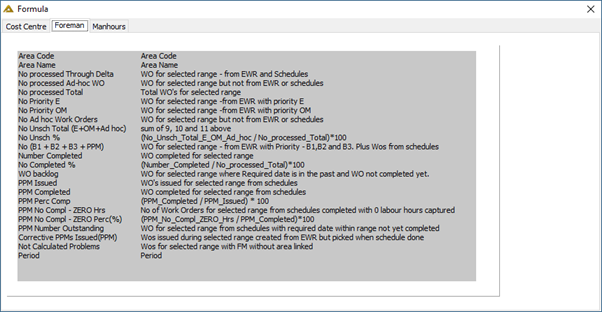

Foreman tab:

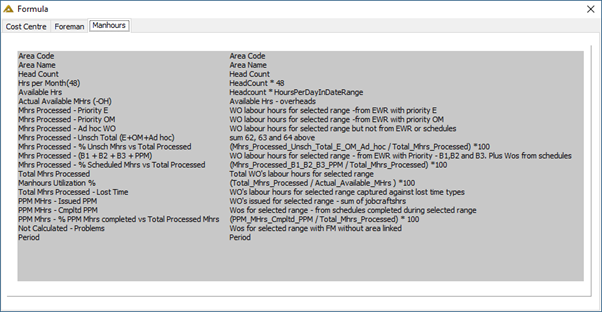

Manhours tab:
